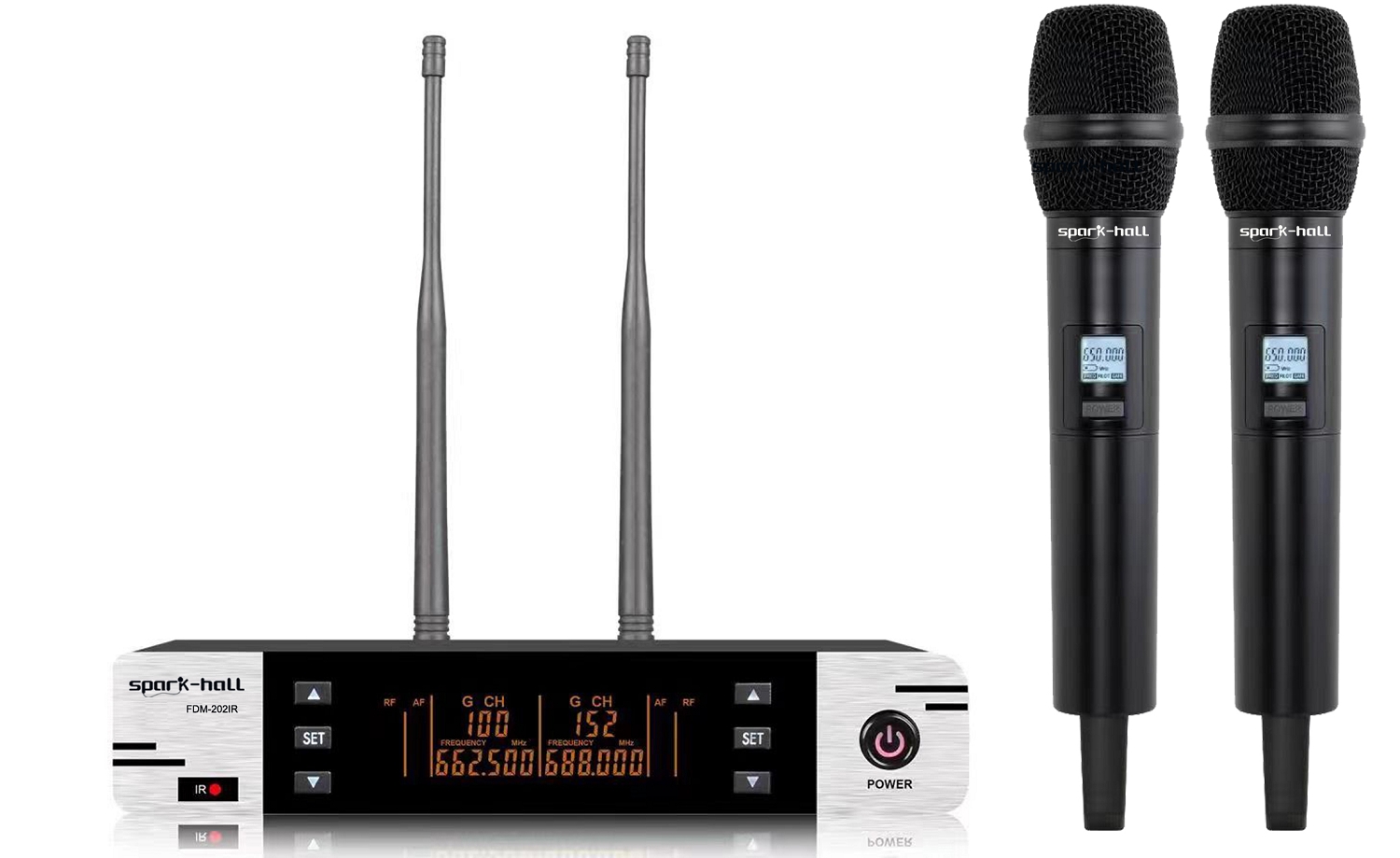

FDM-202IR
FDM-202IR FDM-202IR

FDM-202IR

Product Attributes :

What's included:

1.) Receiver * 1

2.) Transmitting handheld microphone * 2

3.) AC adapter * 1

4.) Audio cable * 1

5.) Antenna * 2

6.) AA battery * 4

7.) Manual

8.) Gift box

Product Description
  • 100 adjustable unique frequencies on each microphone ensures interference-free operation
  • IR sync way to switch frequencies with the touch of a button on the receiver
  • ½ rack unit metal receiver with LCD display
  • Illuminated rotary knobs
  • The display on the microphone shows frequency and battery life
  • The display on the receiver shows RF signal strength, AF signal strength, and the frequency channel of each handheld mic
  • Operating range: 40 meters(indoor) and 50 meters(outdoor)
  • Each mic uses different channel groups to prevent interference from one microphone to the other (There are 200 total different channels on this system – A mic and B mic can be used interchangeably)
  • Ergonomic microphones are extremely high quality with a beautiful diamond cover, and they have a pleasant weight and feel
  • Individual XLR outputs for each microphone to send each microphone to its own mixer channel
  • ¼” mix output to send both mics to one mixer channel
  • Mute function
  • On/Off switch on each microphone
  • Low power consumption for extended battery life
  • Individual microphone volume control
  • Cardioid pick-up pattern
  • Type: Handheld dynamic
  • Features a dual filter design to limit feedback and interference
  • Frequency range: 500MHz-640MHz
  • Rubber feet for tabletop use
  • MCU working voltage: 2.8V-3.6V
  • Frequency Stability: ±0.005%
  • Modulation Mode: UHF
  • Oscillation mode: digital processing
  • Receiving method: digital processing
  • Pilot mode: digital pilot
  • Frequency Response: 50Hz-20KHz (±3 dB)
  • Dynamic Range: 96dB
  • S/N: 92dB
  • T.H.D: < 0.1%(1KHz)
  • Delay: <3.0ms
  • Transmitter power: 11mW
  • Receiver sensitivity: -94dB

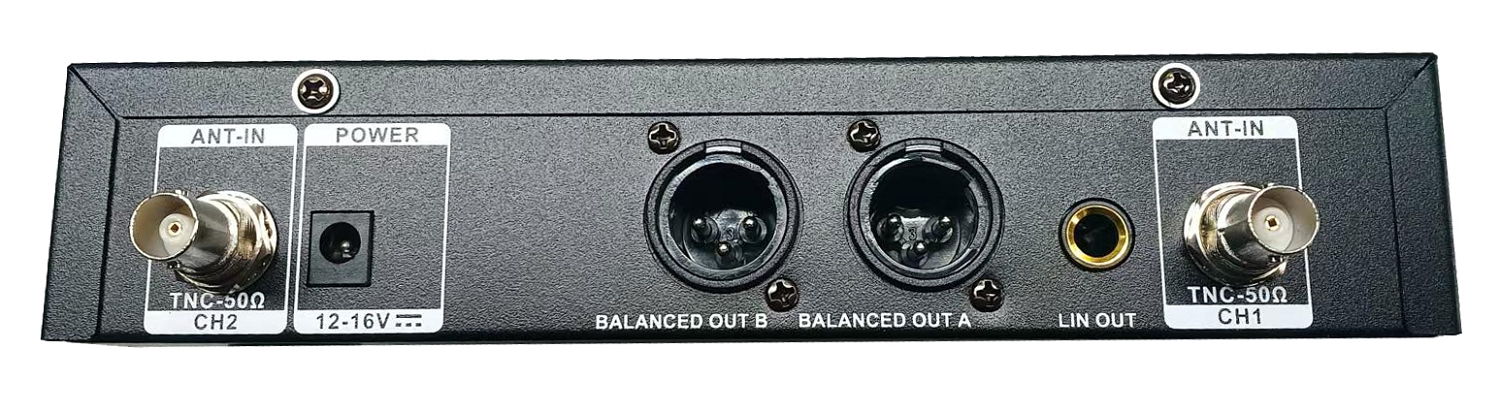

  • Audio Output Jack: XLR balanced & 1/4" unbalanced
  • Power Voltage: AC110V-240V 50/60Hz
  • Operating Temperature: 14°F-122°F
  • Mic Battery Operating Time: up to 10 hours
